Moniter SpO2/PR FDA CE Finger Pulse Oximeter Fingertip Oxygen Monitor SPO2 PR CMS50B Sensor Pulse Oximeter

Moniter SpO2/PR FDA CE Finger Pulse Oximeter Fingertip Oxygen Monitor SPO2 PR CMS50B Sensor Pulse Oximeter

Model:CMS50B

Major Features

*Integrated with SpO₂ probe and processing display module
*Small in volume,light in weight and convenient in carrying
*Operation of the product is simple ,low power consumption
*SpO₂ value display
*Pulse rate value display, bar graph display
*Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage
*Automatically power off function: when the device is under the state of measuring interface . it will automatically power off within 5 seconds if the finger falls out of probe

Main performance

Display Mode: Segment LCD display
SpO₂ Measuring Range: 0%~100%, (the resolution is 1%).
Accuracy: 70%~100%: +/-2% ,Below 70% unspecified.
PR Measuring Range: 30bpm~250bpm, (the resolution is 1bpm)
Accuracy: +/-2bpm or +/-2% (select larger)
Measurement Performance in Weak Filling Condition:
SpO₂ and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO₂ error is +/-4%, pulse rate error is +/-2 bpm or +/-2% (select larger).
Resistance to Surrounding Light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than +/-1%.
Power Consumption: less than 20mA
Voltage: DC 3.0V
Power Supply: 1.5V (AAA size) alkaline batteries * 2
Battery Working Hour: The minimum continually work time is 30 hours,theoretical number is 42 hours.
Safety Type:Interior Battery, BF Type

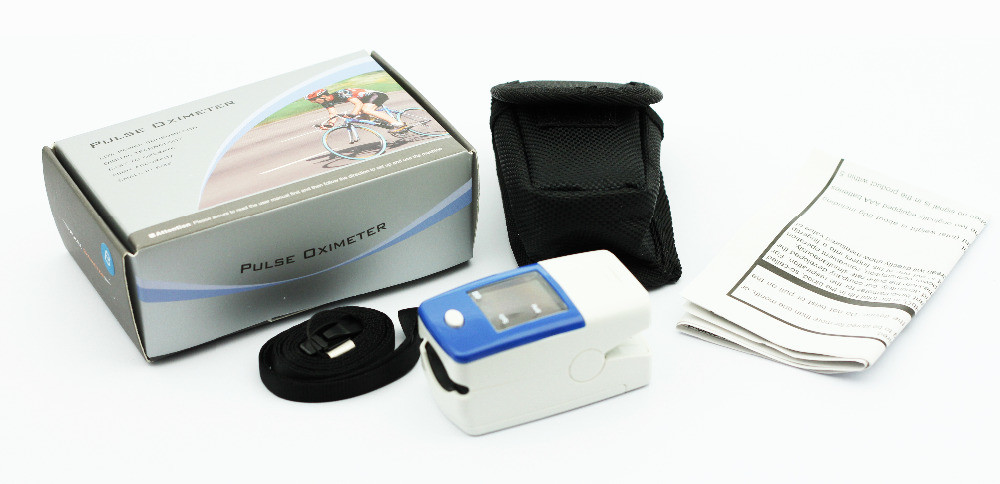

Accessories

Sell in standard:
*A hanging rope
*A user manual

Physical Identity
Dimension: 66(L) * 36(W) * 33(H) mm
Weight: About 50g (with the batteries)

Qualification

Passed CE

Moniter SpO2/PR FDA CE Finger Pulse Oximeter Fingertip Oxygen Monitor SPO2 PR CMS50B Sensor Pulse Oximeter Images
